Technische Dokumentation
-
Technisches Datenblatt
PINS
| ART.-NR. | d₁
[mm]
|
diametro
[in]
|
Beschichtung | L
[mm]
|
L
[in]
|
Stk. |
|---|---|---|---|---|---|---|
| HH10100218 | 0.65 | 0.03 | bronzed | 12 | 1/2'' | 20000 |
| HH10100219 | 0.65 | 0.03 | bronzed | 15 | 9/16'' | 20000 |
| HH10100220 | 0.65 | 0.03 | bronzed | 18 | 11/16'' | 20000 |
| HH10100267 | 0.65 | 0.03 | bronzed | 20 | 13/16'' | 10000 |
| HH10100222 | - | - | - | - | - | 10000 |
| HH10100223 | 0.65 | 0.03 | bronzed | 25 | 1'' | 10000 |
| HH10100225 | 0.65 | 0.03 | bronzed | 35 | 1 3/8'' | 10000 |
| HH10100226 | 0.65 | 0.03 | bronzed | 40 | 1 9/16'' | 13000 |

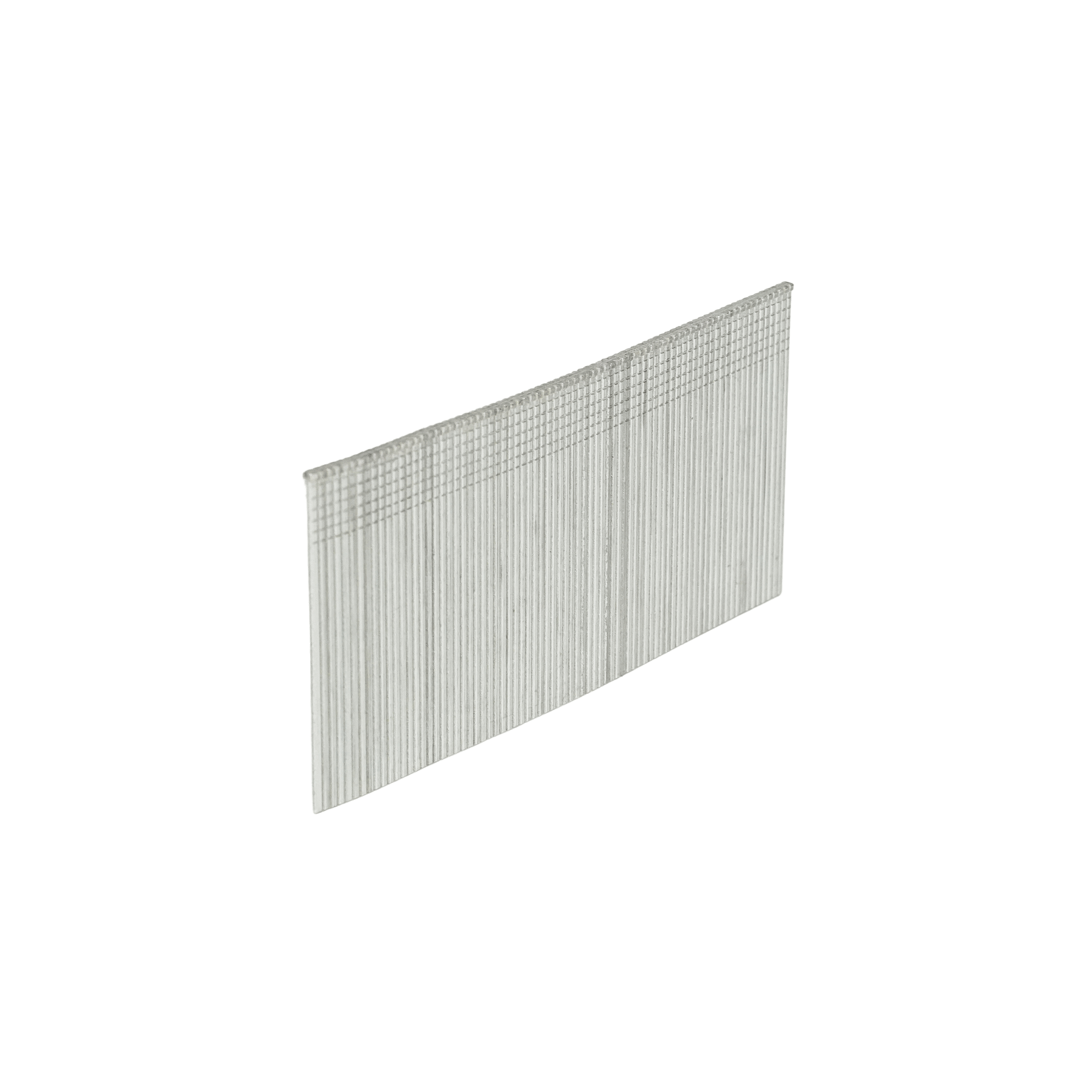

BRADS
| ART.-NR. | d₁
[mm]
|
diametro
[in]
|
Beschichtung | L
[mm]
|
L
[in]
|
Stk. |
|---|---|---|---|---|---|---|
| HH10300645 | 1.2 | 0.05 | electrogalvanized | 25 | 1'' | 5000 |
| HH10300646 | 1.2 | 0.05 | electrogalvanized | 30 | 1 3/16'' | 5000 |
| HH10300717 | 1.2 | 0.05 | electrogalvanized | 32 | 1 1/4'' | 5000 |
| HH10300648 | 1.2 | 0.05 | electrogalvanized | 35 | 1 3/8'' | 5000 |
| HH10300649 | 1.2 | 0.05 | electrogalvanized | 38 | 1 1/2'' | 5000 |
| HH10300650 | 1.2 | 0.05 | electrogalvanized | 40 | 1 9/16'' | 5000 |
| HH10300651 | 1.2 | 0.05 | electrogalvanized | 45 | 1 3/4'' | 5000 |
| HH10300652 | 1.2 | 0.05 | electrogalvanized | 50 | 1 15/16'' | 5000 |
| HH10300730 | 1.2 | 0.05 | stainless A4 | 19 | 3/4'' | 5000 |
| HH10300337 | 1.2 | 0.05 | stainless A4 | 30 | 1 3/16'' | 5000 |
| HH10300338 | 1.2 | 0.05 | stainless A4 | 35 | 1 3/8'' | 5000 |
| HH10300850 | 1.2 | 0.05 | stainless A2 | 50 | 1 15/16'' | 5000 |
