Technische Dokumentation
| Technisches Datenblatt | |
|---|---|
| Ausschreibungstext | |
| Zertifikate |

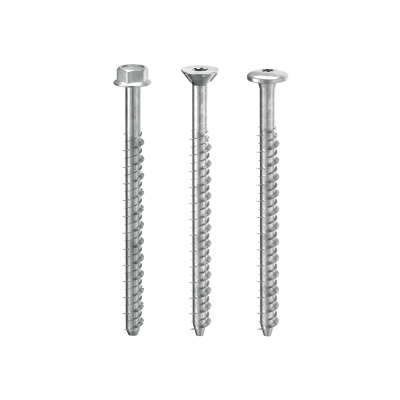

SKR
| ART.-NR. | d₁
[mm]
|
L
[mm]
|
SW | Stk. |
|---|---|---|---|---|
| SKR7560 | 7.5 | 60 | SW13 | 50 |
| SKR7580 | 7.5 | 80 | SW13 | 50 |
| SKR75100 | 7.5 | 100 | SW13 | 50 |
| SKR1080 | 10 | 80 | SW16 | 50 |
| SKR10100 | 10 | 100 | SW16 | 25 |
| SKR10120 | 10 | 120 | SW16 | 25 |
| SKR10140 | 10 | 140 | SW16 | 25 |
| SKR10160 | 10 | 160 | SW16 | 25 |
| SKR12100 | 12 | 100 | SW18 | 25 |
| SKR12120 | 12 | 120 | SW18 | 25 |
| SKR12140 | 12 | 140 | SW18 | 25 |
| SKR12160 | 12 | 160 | SW18 | 25 |
| SKR12200 | 12 | 200 | SW18 | 25 |
| SKR12240 | 12 | 240 | SW18 | 25 |
| SKR12280 | 12 | 280 | SW18 | 25 |
| SKR12320 | 12 | 320 | SW18 | 25 |
| SKR12400 | 12 | 400 | SW18 | 25 |
SKS
| ART.-NR. | d₁
[mm]
|
L
[mm]
|
TX | Stk. |
|---|---|---|---|---|
| SKS7560 | 7.5 | 60 | TX40 | 50 |
| SKS7580 | 7.5 | 80 | TX40 | 50 |
| SKS75100 | 7.5 | 100 | TX40 | 50 |
| SKS75120 | 7.5 | 120 | TX40 | 50 |
| SKS75140 | 7.5 | 140 | TX40 | 50 |
| SKS75160 | 7.5 | 160 | TX40 | 50 |

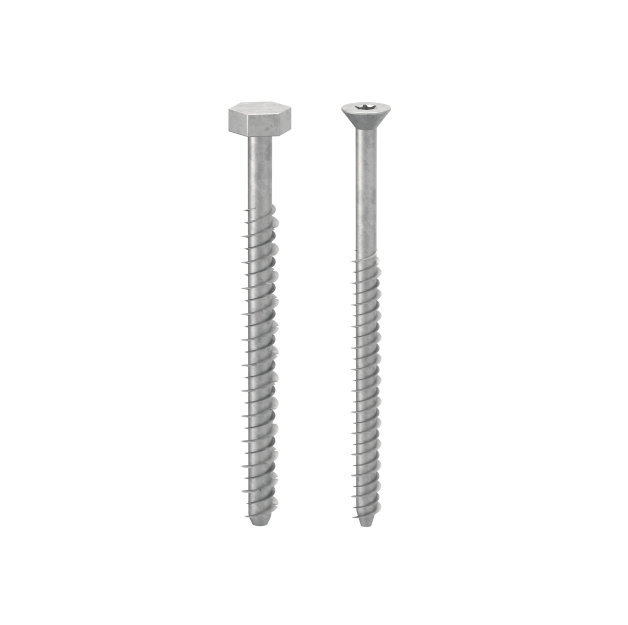

SKR EVO
| ART.-NR. | d₁
[mm]
|
L
[mm]
|
SW | Stk. |
|---|---|---|---|---|
| SKREVO7560 | 7.5 | 60 | SW13 | 50 |
| SKREVO1080 | 10 | 80 | SW16 | 50 |
| SKREVO12100 | 12 | 100 | SW18 | 25 |
SKS EVO
| ART.-NR. | d₁
[mm]
|
L
[mm]
|
TX | Stk. |
|---|---|---|---|---|
| SKSEVO7580 | 7.5 | 80 | TX40 | 50 |
| SKSEVO75100 | 7.5 | 100 | TX40 | 50 |
| SKSEVO75120 | 7.5 | 120 | TX40 | 50 |
