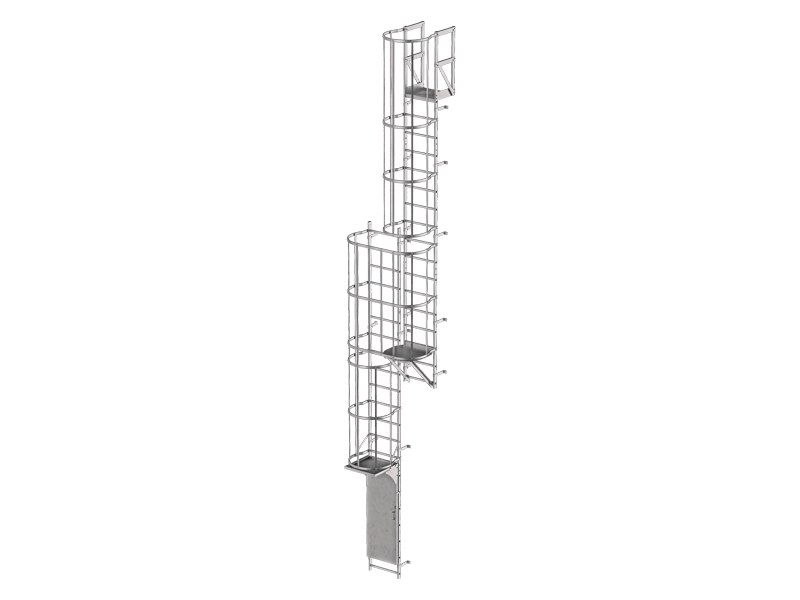

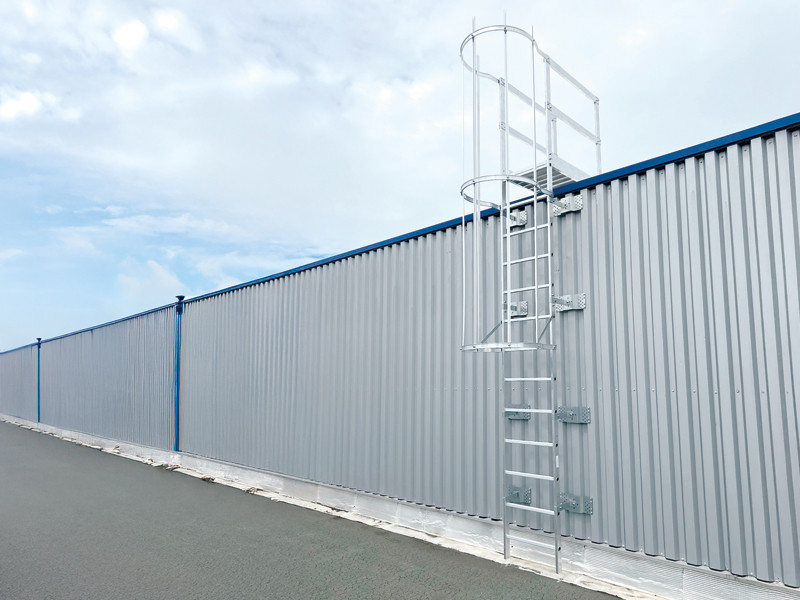

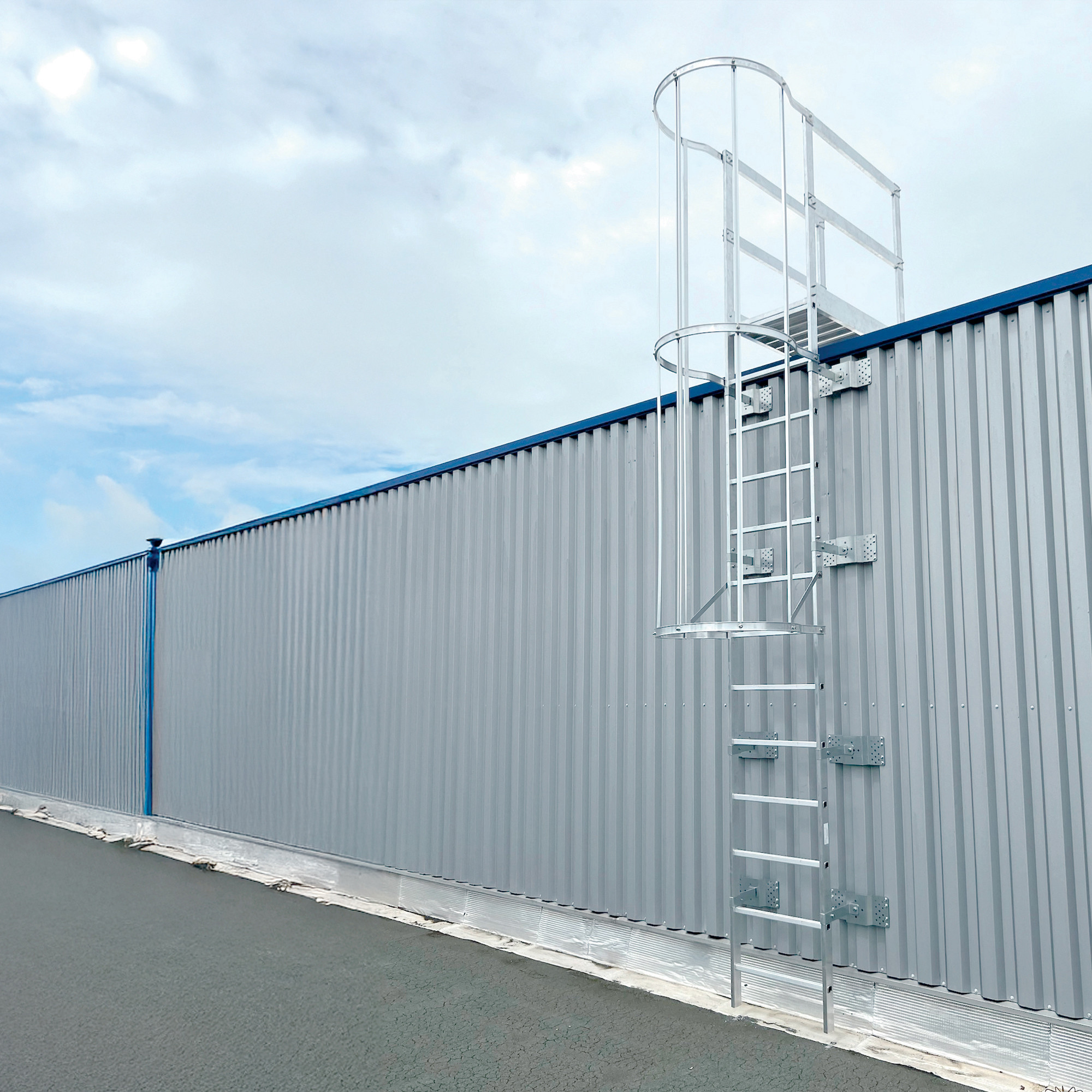

LEITER MIT RÜCKENSCHUTZ
STEP UP
New
Sie bestehen aus einer Aluminiumlegierung und bieten hohe mechanische Beständigkeit und Beständigkeit gegenüber Korrosion und Witterungseinflüssen.
Sie bieten dem Anwender maximale Sicherheit und dem Installateur ein zuverlässiges und leicht zu montierendes Produkt.
Dank des breiten Sortiments an Komponenten passt sich das Modulsystem jeder Projektanforderung an.
Technische Dokumentation
Technisches Datenblatt
|
|---|
MODULI SCALA
| ART.-NR. | Beschreibung | B
[mm]
|
L
[mm]
|
H
[mm]
|
Stk. | |
|---|---|---|---|---|---|---|
| STEPMOD120 | New | ladder module 1,20 m - 4 steps | 65 | 636 | 1200 | 1 |
| STEPMOD150 | New | ladder module 1,50 m - 5 steps | 65 | 636 | 1500 | 1 |
| STEPMOD180 | New | ladder module 1,80 m - 6 steps | 65 | 636 | 1800 | 1 |
| STEPMOD210 | New | ladder module 2,10 m - 7 steps | 65 | 636 | 2100 | 1 |
| STEPMOD240 | New | ladder module 2,40 m - 8 steps | 65 | 636 | 2400 | 1 |
| STEPMODCAP | New | pair of upper upright caps | - | - | - | 1 |
| STEPMODJUN | New | pair of ladder-to-ladder joints | 21 | 62 | 240 | 1 |
USCITE FRONTALI
| ART.-NR. | Beschreibung | B
[mm]
|
L
[mm]
|
H
[mm]
|
Stk. | |
|---|---|---|---|---|---|---|
| STEPOUT160 | New | module with front exit rail 1,6 m - 2 steps | 65 | 636 | 1595 | 1 |
| STEPOUT190 | New | module with front exit rail 1,9 m - 3 steps | 65 | 636 | 1895 | 1 |
| STEPOUT220 | New | module with front exit rail 2,2 m - 4 steps | 65 | 636 | 2195 | 1 |
| STEPOUT250 | New | module with front exit rail 2,5 m - 5 steps | 65 | 636 | 2495 | 1 |
| STEPOUTJUN | New | pair of ladder joints-front exit rail | 21 | 62 | 240 | 1 |
GABBIA
| ART.-NR. | Beschreibung | B
[mm]
|
L
[mm]
|
H
[mm]
|
Stk. | |
|---|---|---|---|---|---|---|
| STEPBAR180 | New | kit of 5 cage bars 1,8 m | 26.5 | 15 | 1800 | 1 |
| STEPBAR220 | New | kit of 5 cage bars 2,2 m | 26.5 | 15 | 2200 | 1 |
| STEPBAR250 | New | kit of 5 cage bars 2,5 m | 26.5 | 15 | 2500 | 1 |
| STEPBARJUN | New | kit with 5 rod joints for cage | 18 | 22 | 80 | 1 |
ANELLI
| ART.-NR. | Beschreibung | B
[mm]
|
L
[mm]
|
H
[mm]
|
Stk. | |
|---|---|---|---|---|---|---|
| STEPRINGIT | New | cage ring Leg. Decree 81/2008 - UNI 11962:2024 | 660 | 636 | 44 | 1 |
| STEPRINGEU | New | cage ring EN 14122 | 760 | 636 | 44 | 1 |
| STEPRINGJUN | New | pair of ladder-to-ring joints for cage | 36 | 61 | 36 | 1 |
| STEPSUPRING | New | pair of reinforcements between steps and safety cage | 340 | 51 | 340 | 1 |
STAFFE
| ART.-NR. | Beschreibung | B
[mm]
|
L
[mm]
|
H
[mm]
|
Stk. | |
|---|---|---|---|---|---|---|
| STEPBRAF150 | New | pair of mounting brackets for a 150 mm wall distance | 269 | 88 | 50 | 1 |
| STEPBRAV400 | New | pair of mounting brackets for an adjustable wall distance - max. 400 mm | 474 | 88 | 55 | 1 |
| STEPBRAV600 | New | pair of mounting brackets for an adjustable wall distance - max. 600 mm | 674 | 88 | 55 | 1 |
| STEPBRAMET | New | pair of mounting plates for trapezoidal metal (fasteners included) | 150 | 358 | 32 | 1 |
TAPPI
| ART.-NR. | Beschreibung | Stk. | |
|---|---|---|---|
| STEPMODCAP | New | pair of upper upright caps | 1 |
| STEPBARCAP | New | kit with 5 rod caps | 1 |
PEDANA PER SDOPPIAMENTO
| ART.-NR. | Beschreibung | Stk. | |
|---|---|---|---|
| STEPBOARIT | New | splitting platform Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPBOAREU | New | splitting platform EN 14122 | 1 |
| STEPDOURIT | New | splitting rod Leg. Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPDOUREU | New | splitting rod EN 14122 | 1 |
TARGHETTA
| ART.-NR. | Beschreibung | Stk. | |
|---|---|---|---|
| STEPTARGAEU | New | label EN 14122-4 + EN manual | 1 |
| STEPTARGAIT | New | label Leg. Decree 81/2008 - UNI 11962:2024 + IT manual | 1 |
ACCESSO SCALA
| ART.-NR. | Beschreibung | Stk. | |
|---|---|---|---|
| STEPTRAPEU | New | safety gate for ladder access EN 14122 | 1 |
| STEPTRAPIT | New | safety gate for ladder access Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPDOOR90 | New | half-height safety door complete with fasteners and door stop | 1 |
| STEPDOOR180 | New | safety door | 1 |
| STEPDOORUP | New | upper part of safety door | 1 |
CHIUSURA
| ART.-NR. | Beschreibung | Stk. | |
|---|---|---|---|
| STEPCOVEREU | New | metal sheet to cover the safety cage EN 14122 | 1 |
| STEPCOVERIT | New | metal sheet to cover the safety cage Legislative Decree 81/2008 - UNI 11962:2024 | 1 |
| STEPCOVERSIDE | New | pair of side cage covers | 1 |
KIT PROTEZIONE
| ART.-NR. | Beschreibung | Stk. | |
|---|---|---|---|
| STEPLAND300 | New | 300 mm platform kit with side protection | 1 |
| STEPLAND500 | New | 500 mm platform kit with side protection | 1 |
| STEPLAND800 | New | 800 mm platform kit with side protection | 1 |
| STEPLAND1000 | New | 1000 mm platform kit with side protection | 1 |
ACCESSORI E BASI
| ART.-NR. | Beschreibung | Stk. | |
|---|---|---|---|
| STEPDOORDIST | New | - | 1 |
| STEPFEETREG | New | pair of adjustable support feet with holes for possible ground fastening | 1 |
| STEPFEETHING | New | pair of hinged feet with adjustable supports | 1 |
CANCELLETTI
| ART.-NR. | Beschreibung | Stk. | |
|---|---|---|---|
| STEPGATE550 | New | landing gate H=550 mm (fasteners included) | 1 |
| STEPGATEKIT | New | fastening kit for duplication of STEPGATE550 gate | 1 |
