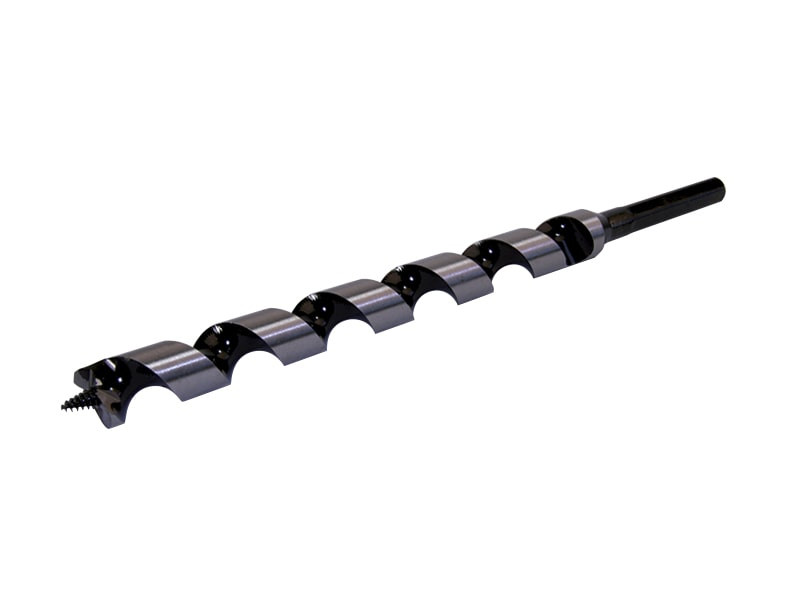

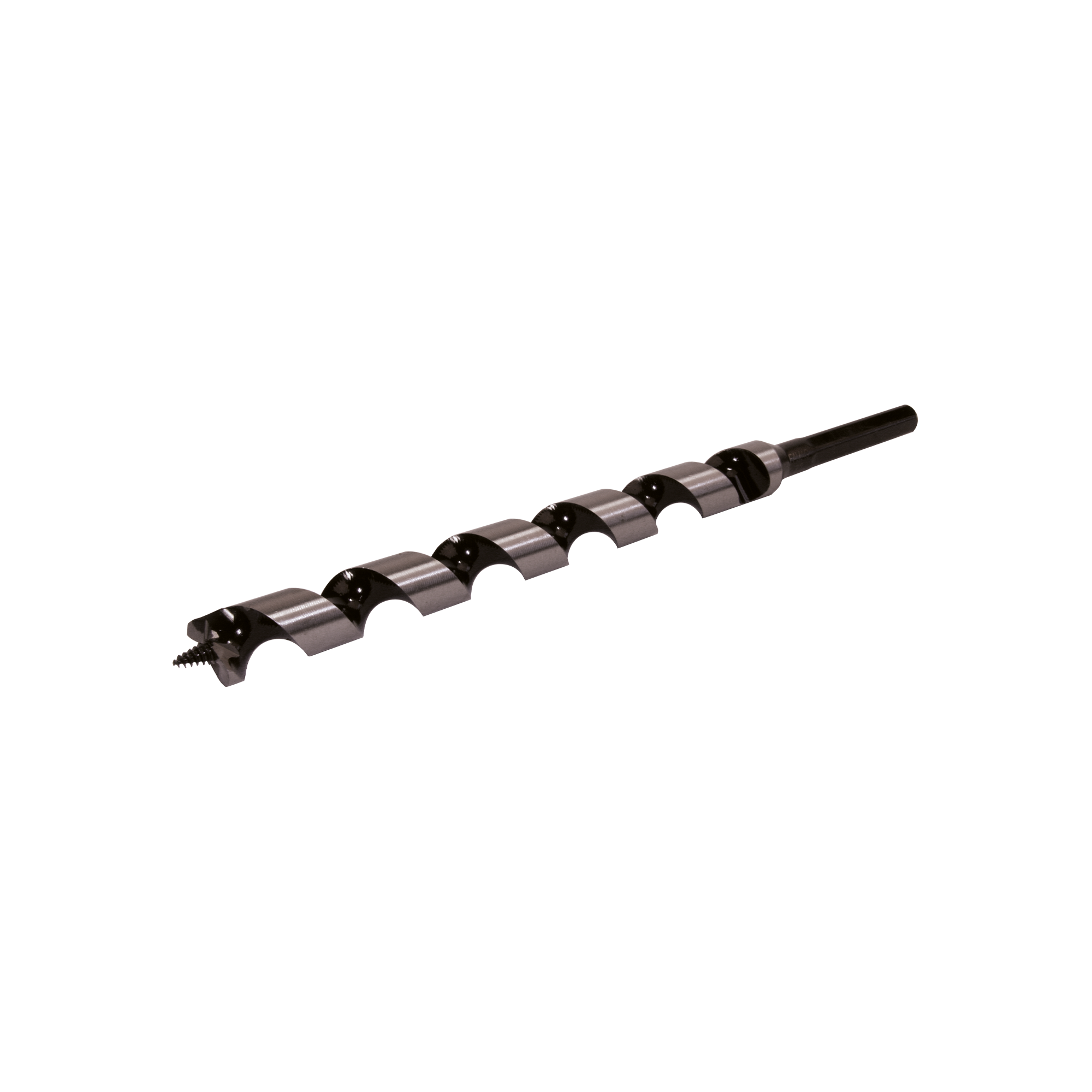

LEWIS
SCHLANGENBOHRER FÜR TIEFLOCHBOHRUNGEN IN WEICH- UND EUROPÄISCHEM HARTHOLZ
Mit runder Spiralnut, Gewindespitze, Hauptschneide und Vorschneider in Spitzenqualität. Ausführung mit abgesetztem Kopf und Sechskantschaft (ab Ø8 mm). Aus legiertem Werkzeugstahl (WS). Mit den beiden langen Versionen (Ø13 mm und Ø16 mm) können Bohrungen von mehr als 2 Metern Länge durchgeführt werden; optimal für die Montage von RTR-Gewindestangen.
Technische Dokumentation
-
Technisches Datenblatt
LEWIS
| ART.-NR. | d
[mm]
|
L
[mm]
|
Stk. |
|---|---|---|---|
| F1410205 | 5 | 235 | 1 |
| F1410206 | 6 | 235 | 1 |
| F1410207 | 7 | 235 | 1 |
| F1410208 | 8 | 235 | 1 |
| F1410210 | 10 | 235 | 1 |
| F1410212 | 12 | 235 | 1 |
| F1410214 | 14 | 235 | 1 |
| F1410216 | 16 | 235 | 1 |
| F1410218 | 18 | 235 | 1 |
| F1410220 | 20 | 235 | 1 |
| F1410222 | 22 | 235 | 1 |
| F1410224 | 24 | 235 | 1 |
| F1410228 | 28 | 235 | 1 |
| F1410230 | 30 | 235 | 1 |
| F1410232 | 32 | 235 | 1 |
| F1410305 | 5 | 320 | 1 |
| F1410306 | 6 | 320 | 1 |
| F1410307 | 7 | 320 | 1 |
| F1410308 | 8 | 320 | 1 |
| F1410309 | 9 | 320 | 1 |
| F1410310 | 10 | 320 | 1 |
| F1410312 | 12 | 320 | 1 |
| F1410314 | 14 | 320 | 1 |
| F1410316 | 16 | 320 | 1 |
| F1410318 | 18 | 320 | 1 |
| F1410320 | 20 | 320 | 1 |
| F1410322 | 22 | 320 | 1 |
| F1410324 | 24 | 320 | 1 |
| F1410326 | 26 | 320 | 1 |
| F1410328 | 28 | 320 | 1 |
| F1410330 | 30 | 320 | 1 |
| F1410332 | 32 | 320 | 1 |
| F1410407 | 7 | 460 | 1 |
| F1410408 | 8 | 460 | 1 |
| F1410410 | 10 | 460 | 1 |
| F1410412 | 12 | 460 | 1 |
| F1410414 | 14 | 460 | 1 |
| F1410416 | 16 | 460 | 1 |
| F1410418 | 18 | 460 | 1 |
| F1410420 | 20 | 460 | 1 |
| F1410422 | 22 | 460 | 1 |
| F1410424 | 24 | 460 | 1 |
| F1410426 | 26 | 460 | 1 |
| F1410428 | 28 | 460 | 1 |
| F1410430 | 30 | 460 | 1 |
| F1410432 | 32 | 460 | 1 |
| F1410440 | 40 | 460 | 1 |
| F1410450 | 50 | 460 | 1 |
| F1410612 | 12 | 650 | 1 |
| F1410614 | 14 | 650 | 1 |
| F1410616 | 16 | 650 | 1 |
| F1410618 | 18 | 650 | 1 |
| F1410620 | 20 | 650 | 1 |
| F1410622 | 22 | 650 | 1 |
| F1410624 | 24 | 650 | 1 |
| F1410626 | 26 | 650 | 1 |
| F1410628 | 28 | 650 | 1 |
| F1410630 | 30 | 650 | 1 |
| F1410632 | 32 | 650 | 1 |
| F1410014 | 14 | 1080 | 1 |
| F1410016 | 16 | 1080 | 1 |
| F1410018 | 18 | 1080 | 1 |
| F1410020 | 20 | 1080 | 1 |
| F1410022 | 22 | 1080 | 1 |
| F1410024 | 24 | 1080 | 1 |
| F1410026 | 26 | 1080 | 1 |
| F1410028 | 28 | 1080 | 1 |
| F1410030 | 30 | 1080 | 1 |
| F1410032 | 32 | 1080 | 1 |
| F1410134 | 34 | 1000 | 1 |
| F1410136 | 36 | 1000 | 1 |
| F1410138 | 38 | 1000 | 1 |
| F1410140 | 40 | 1000 | 1 |
| F1410145 | 45 | 1000 | 1 |
| F1410150 | 50 | 1000 | 1 |

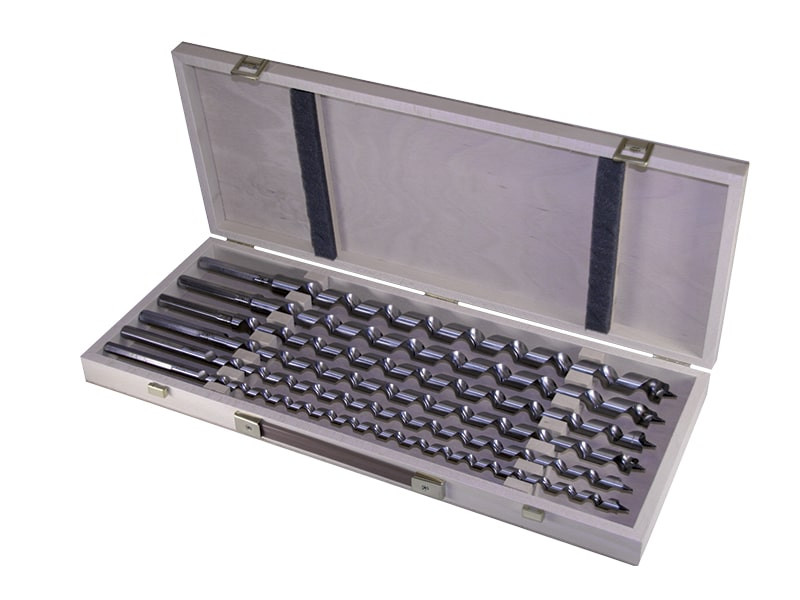

LEWIS-SET
| ART.-NR. | Version | L
[mm]
|
Stk. |
|---|---|---|---|
| F1410200 | Ø6, 8, 10, 12, 14, 16, 18, 20 mm | 235 | 1 |
| F1410303 | Ø10, 12, 14, 16, 18, 20, 22, 24 mm | 320 | 1 |
| F1410403 | Ø10, 12, 14, 16, 18, 20, 22, 24 mm | 460 | 1 |
LEWIS-INCH
| ART.-NR. | Version | d
[mm]
|
L
[mm]
|
L
[in]
|
Stk. |
|---|---|---|---|---|---|
| F1416510 | 3/8 inch | 9.525 | 460 | 18 1/8'' | 1 |
| F1416512 | 7/16 inch | 11.11 | 460 | 18 1/8'' | 1 |
| F1416513 | 1/2 inch | 12.7 | 460 | 18 1/8'' | 1 |
| F1416515 | 9/16 inch | 14.287 | 460 | 18 1/8'' | 1 |
| F1416516 | 5/8 inch | 15.875 | 460 | 18 1/8'' | 1 |
| F1416518 | 11/16 inch | 17.462 | 460 | 18 1/8'' | 1 |
| F1416520 | 3/4 inch | 19.05 | 460 | 18 1/8'' | 1 |
| F1416521 | 13/16 inch | 20.637 | 460 | 18 1/8'' | 1 |
| F1416523 | 7/8 inch | 22.225 | 460 | 18 1/8'' | 1 |
| F1416524 | 15/16 inch | 23.813 | 460 | 18 1/8'' | 1 |
| F1416526 | 1 inch | 25.4 | 460 | 18 1/8'' | 1 |
| F1416529 | 1 1/8 inch | 28.58 | 460 | 18 1/8'' | 1 |
| F1416532 | 1 1/4 inch | 31.75 | 460 | 18 1/8'' | 1 |
| F1416535 | 1 3/8 inch | 34.93 | 460 | 18 1/8'' | 1 |
| F1416539 | 1 1/2 inch | 38.1 | 460 | 18 1/8'' | 1 |
